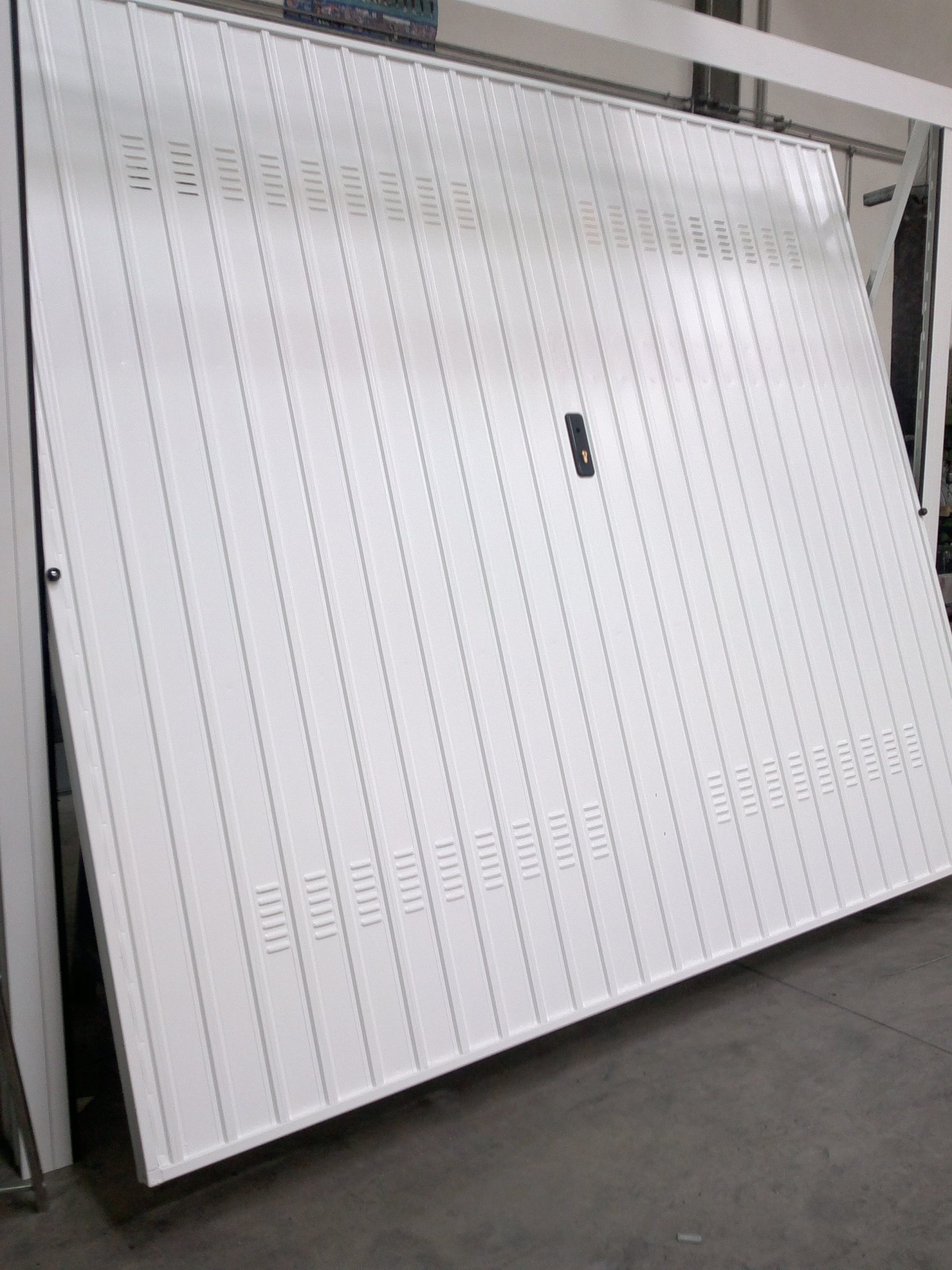

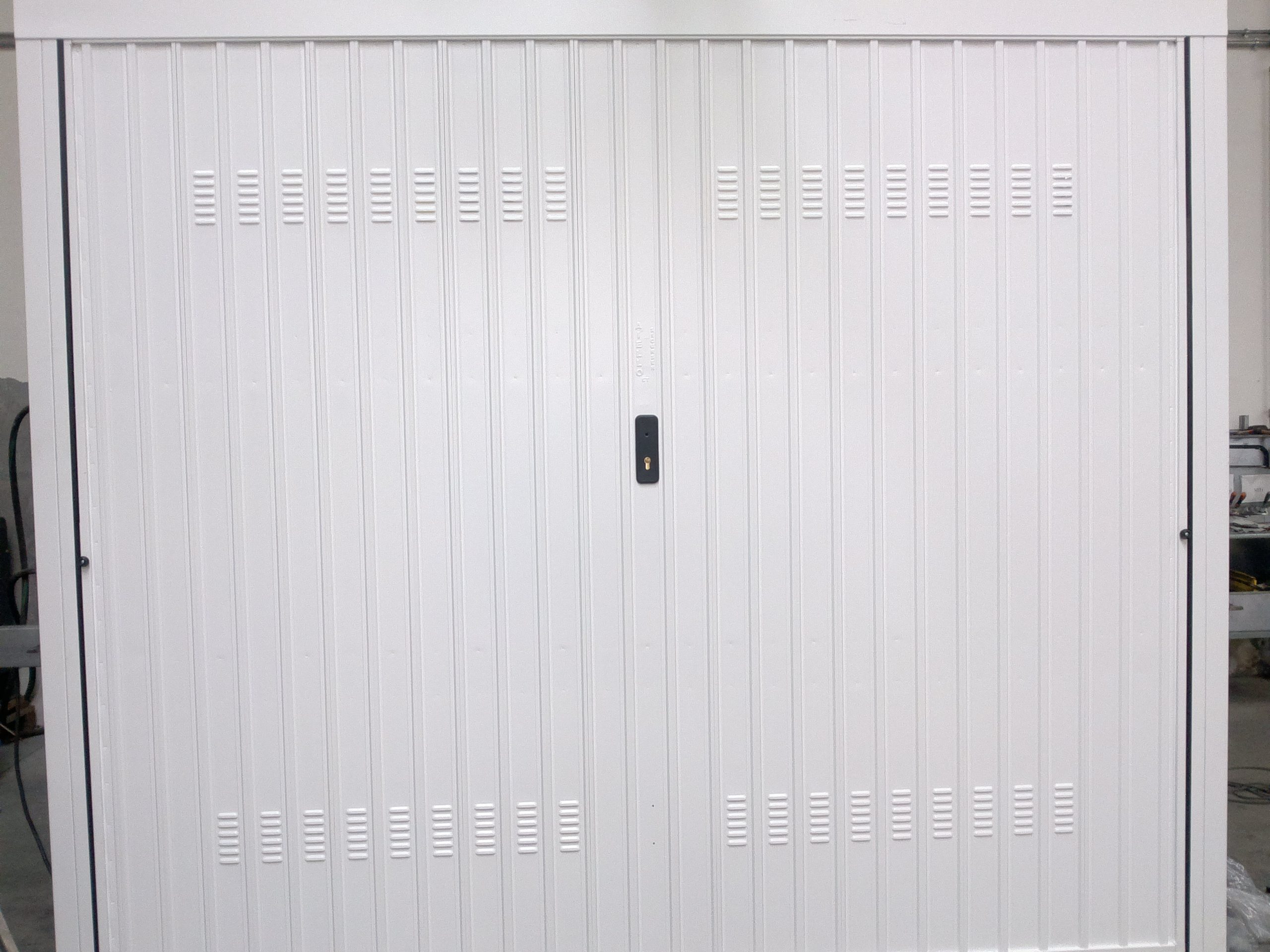

Overhead doors line fully manufactured in sheet steel, printed and galvanized with the counterweight system. The line includes four models; each of them is different for some technical features.

The overhead door is always supplied with a CE plate with a serial number, installation manual, use-maintenance-security and declaration of DoP Performance in conformity with the new Regulation on the Construction Materials 305/2011 CPR and in compliance with the harmonized standard EN 13241-1.

Features:

  • Fully manufactured in steel sheet, thickness 6/10

  • Counterweight system

  • Strengthened by one/two omega-like profiles

  • Possibility of a side rubber seal

  • Parachute device against casual closure of the
    mobile door

  • Standard black plastic handle

  • Version with non-protruding mobile door

  • Manual operation with possible motorization, on request

  • Installation manual

  • Certified product in compliance with UNI EN 13241 standards

Materials and Finishes:

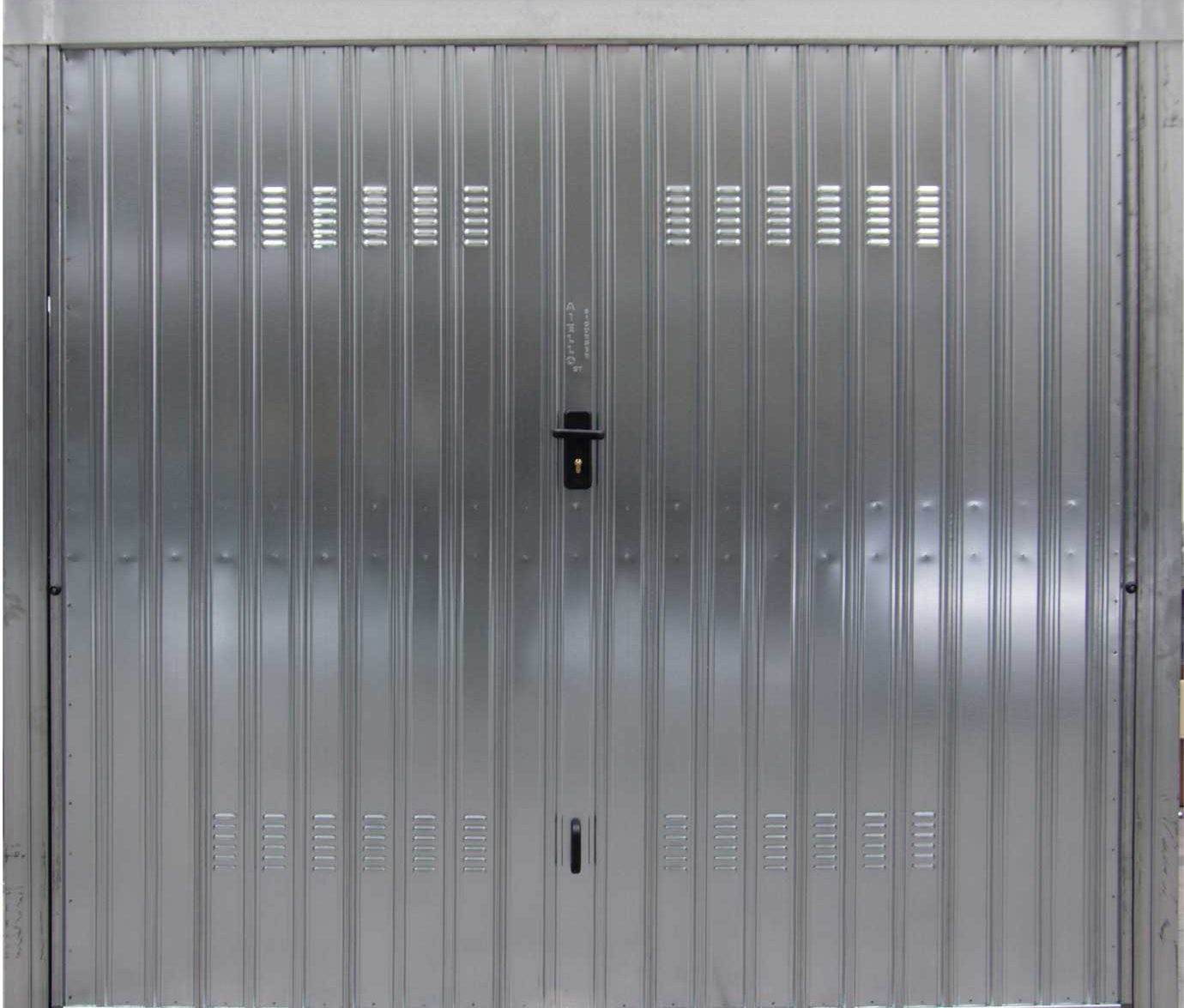

  • Galvanized sheet
  • Powder coating

Installation Schemes

Protruding version beyond light

Protruding version in light

Non-protruding version

All the measures are approximative.

Optional

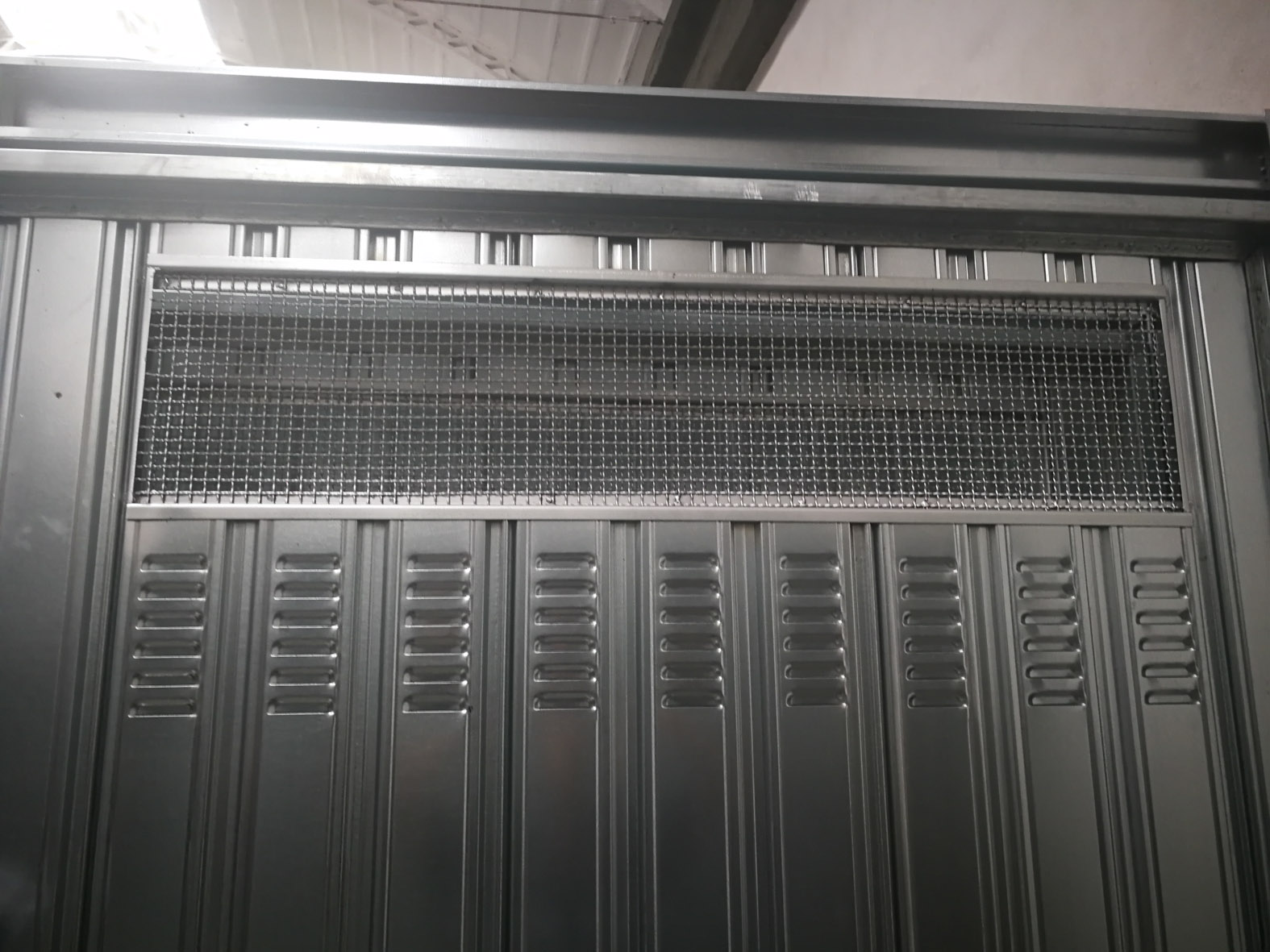

Fanlight with grid

Fanlight with grid

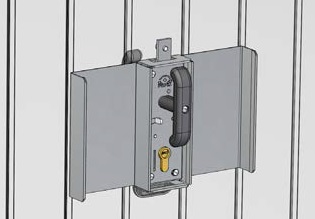

Security plates

Lock with 3 points
of closure

Automation

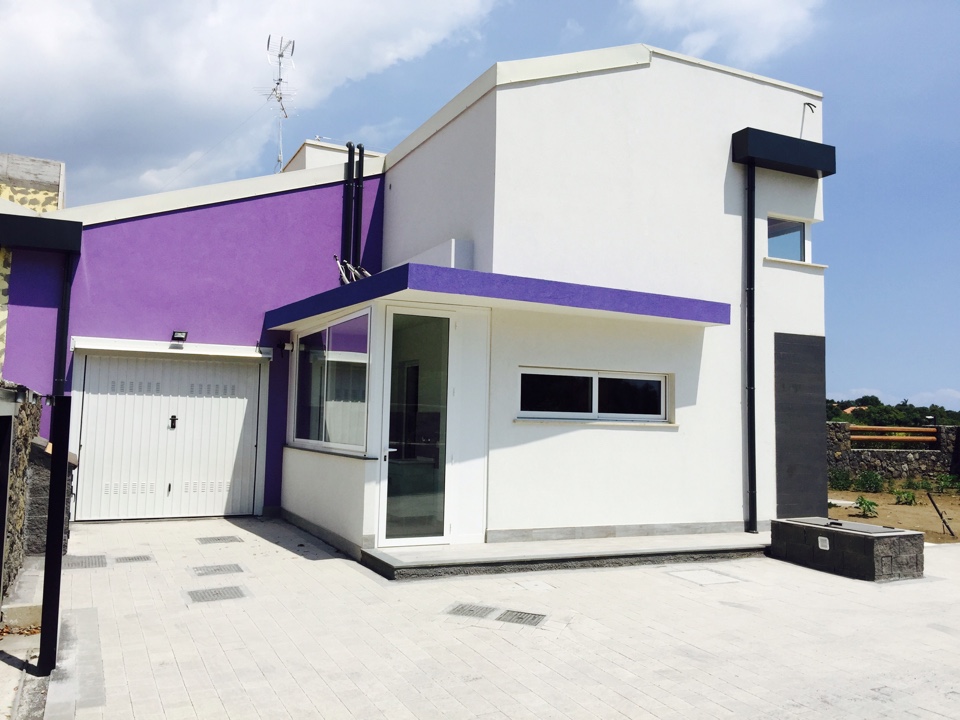

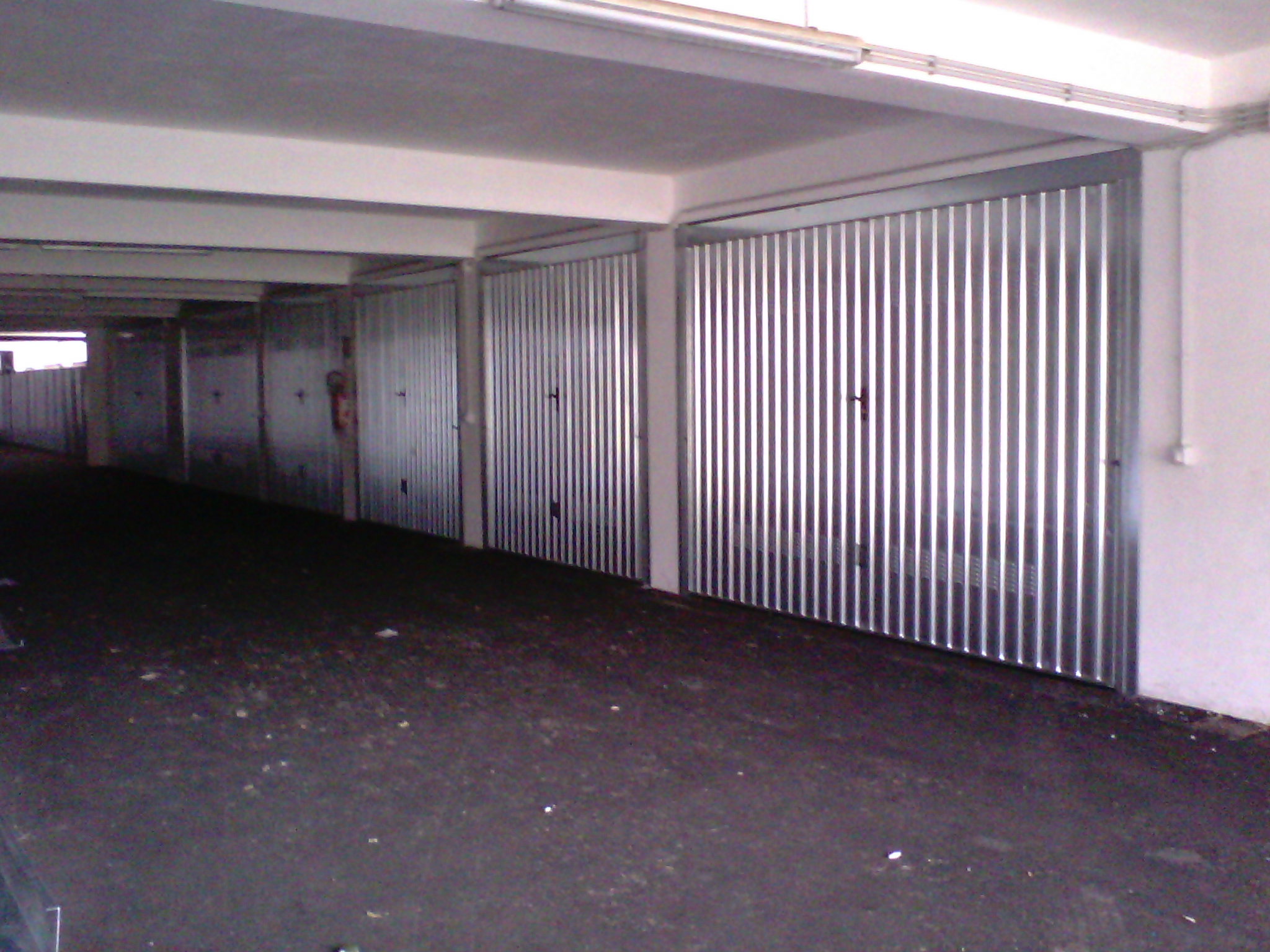

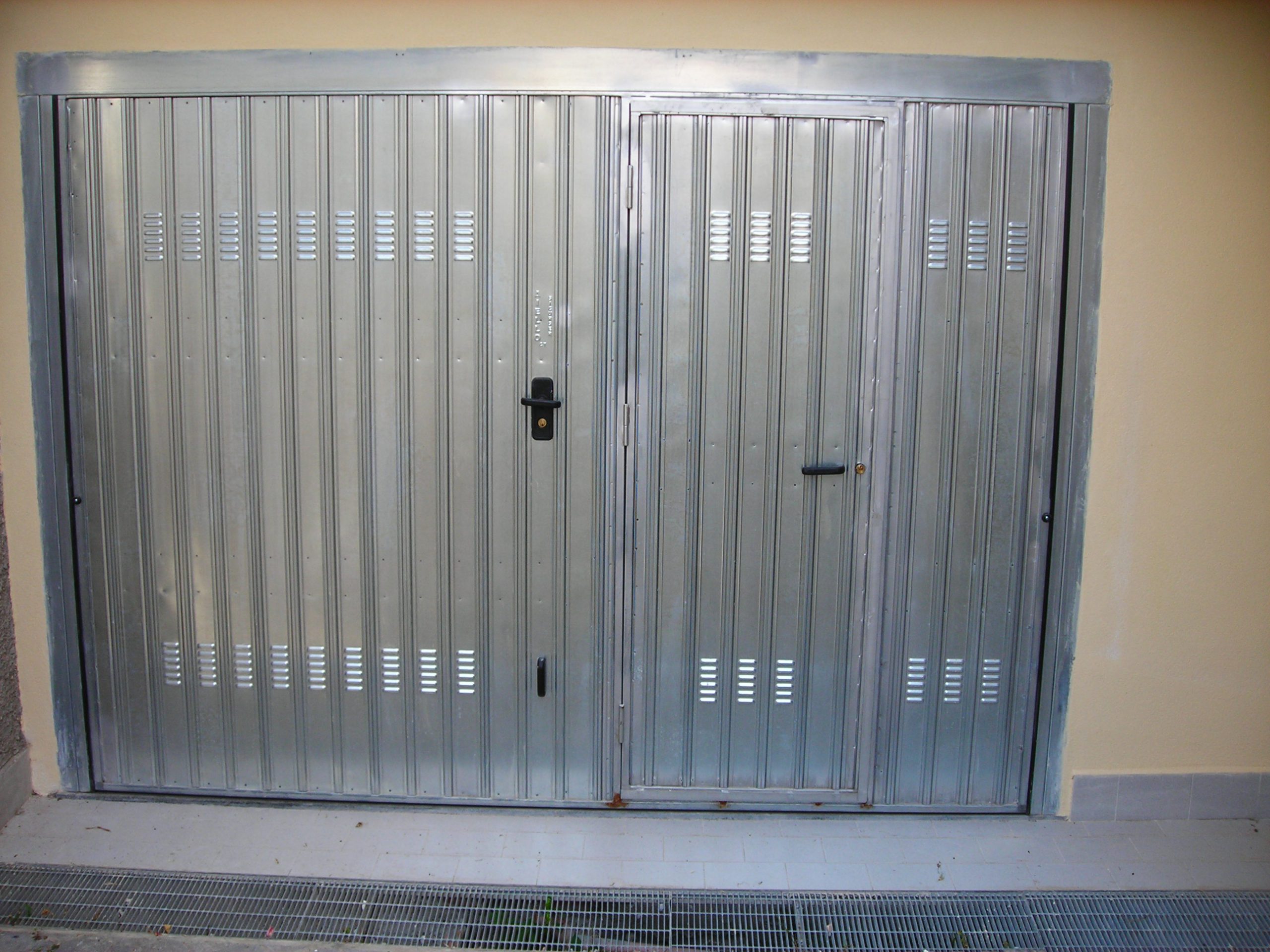

Some examples of our work
